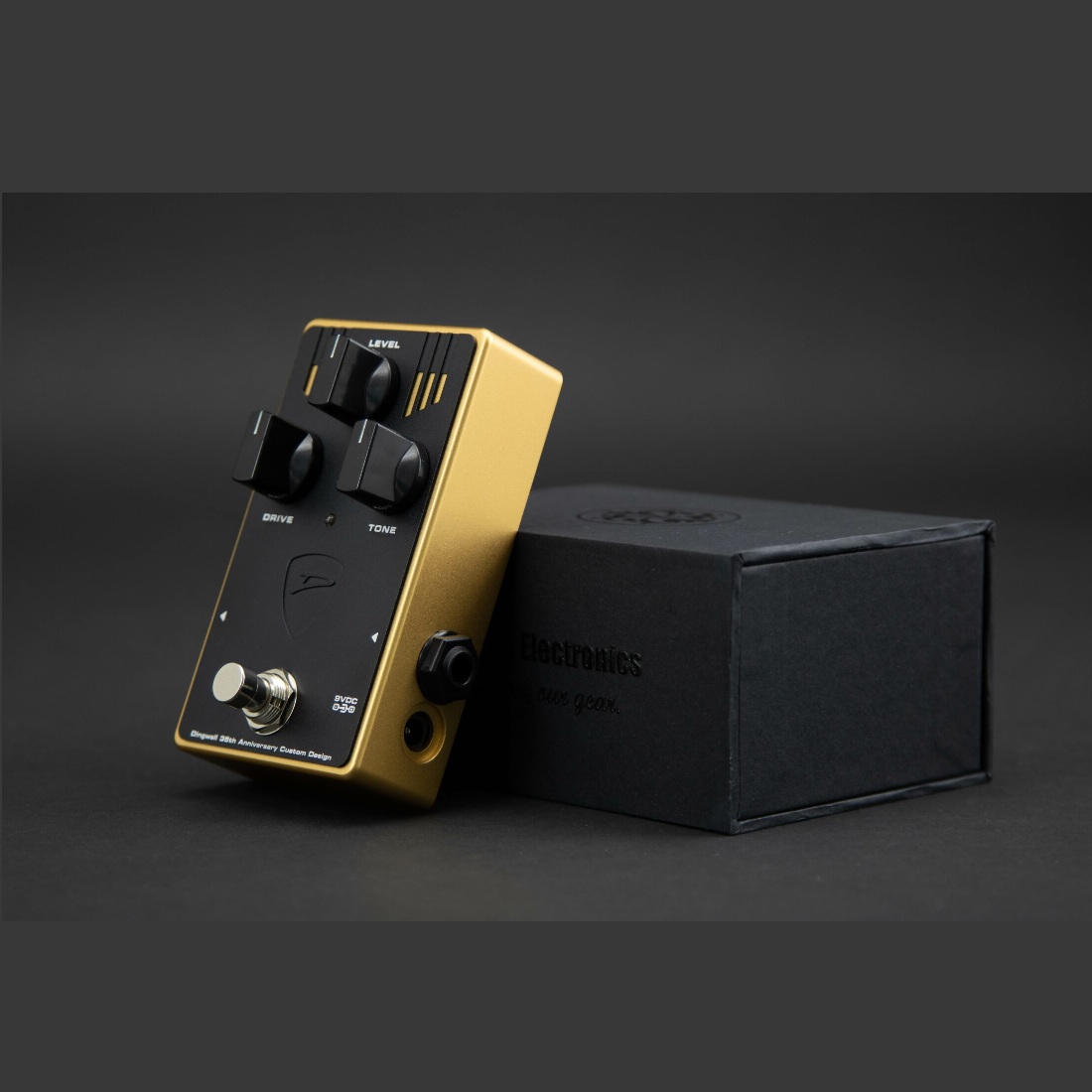

Designed in collaboration with Darkglass Electronics, our 35th Anniversary drive pedal goes full stealth with a black and gold colour scheme and a special 35th Anniversary logo box. Aside from the engage switch (which illuminates a very cool LED) and the usual in/out and DC power sockets, the pedal has three controls – level, drive and tone. As with all Darkglass pedals, you also get true bypass switching, a particularly hard-wearing footswitch and a super-bright LED.

While this is a stompbox capable of some impressive high gain sounds, it’s been designed to be equally effective at lower, more classic levels of drive and to be sensitive to bass playing dynamics. “We’ve blended old-school vibes, appealing visuals and some modern production techniques to create a pedal that has much more versatility than you might have assumed,” said Sheldon Dingwall. “It’s really been designed to capture the dynamic interaction between you and your bass. There’s plenty of dynamic range before the crunch really sets in.”

The result is a wide range of tonal possibilities from subtly distorted blues tones through to classic rock and metal. This is the perfect stompbox for Dingwall aficionados looking for something with plenty of future collectable prestige.

CONTROLS

• Tone – Controls the high-frequency content of the sound. A variable low pass filter from 3 kHz (ccw) to 8 kHz (cw).
• Level- Sets the volume of the overdriven signal
• Drive – Sets the amount of saturation in the overdriven signal.

TECHNICAL SPECIFICATIONS

• Input Impedance – 1MΩ
• Max input level – 1.5V RMS (4.2 Vpp)
• Output Impedance – 1kΩ
• Current Consumption – ~17mA
• Voltage: 9V DC (center negative)
• DIMENSIONS – Width 75 mm / 3” Length 111 mm / 4¼” Height 43 mm / 1¾” Weight 235 g / 0.5 lb

EMC / EMI

This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help.

WARRANTY

To activate the warranty, we encourage you to register your product on: http://mypedal.darkglass.com and enter the serial number on the back of your pedal. Please contact us via email before shipping a product to us.

WARNING

The Dingwall 35th Anniversary Custom Design pedal has a current draw of ~17mA. Only use a regulated 9V DC adapter with a center-negative plug. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
